From R&D bench to high-volume manufacturing, AMX pairs sintering presses with non-destructive scanning acoustic microscopy to deliver a single, traceable workflow for power electronics modules.
Research, Laboratory, and University Applications

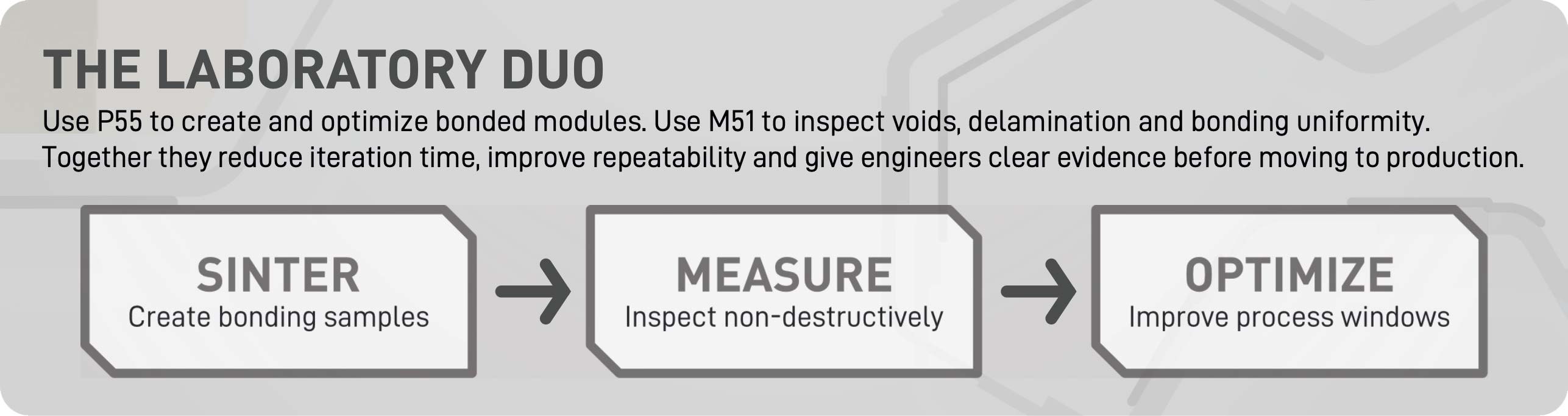

R&D sintering and acoustic inspection working as one powerful duo.X-Sinter P55 and X-SAM M51 create a versatile laboratory workflow: develop modules, tune bonding parameters, and validate bonding quality with non-destructive scanning acoustic microscopy. The result is a fast, flexible path from process idea to reliable data.
X-Sinter P55
Semi-automatic sinter press for R&D and small-scale production
- High accuracy unit for R&D and Prototyping
- Large Sintering area 300 x 300 mm
- Compact design: 1300x1300 mm
- Clamping force: 300kN
- Max Temp up to 320°C
- External Thermocouple inspection point
- Uniform pressure and quality control system
- Inert atmosphere carrier (N2, N2+H2, vacuum or other)
- Patented planetary load cell system
- Lower force measurement sensor for quality control
- Wafer process tool up to 12'' (in inert atmosphere)
- Customized fixture
- Automatic clamping
- Up to 100 recipe storage / 4 different levels of access
- USB Data export *.CSV
- Touch-screen display
- Easy Interface in English/Italian/Chinese/German
X-SAM M51
Desktop SAM for lab and quality inspection
- High precision acoustic microscope for R&D activities and daily sampling inspection.
- Designed for lab and clean-room environments
- AMX software interface, defect mapping analysis and thru-scan.
- Ideal after sintering or other bonding operations to verify the interface quality.

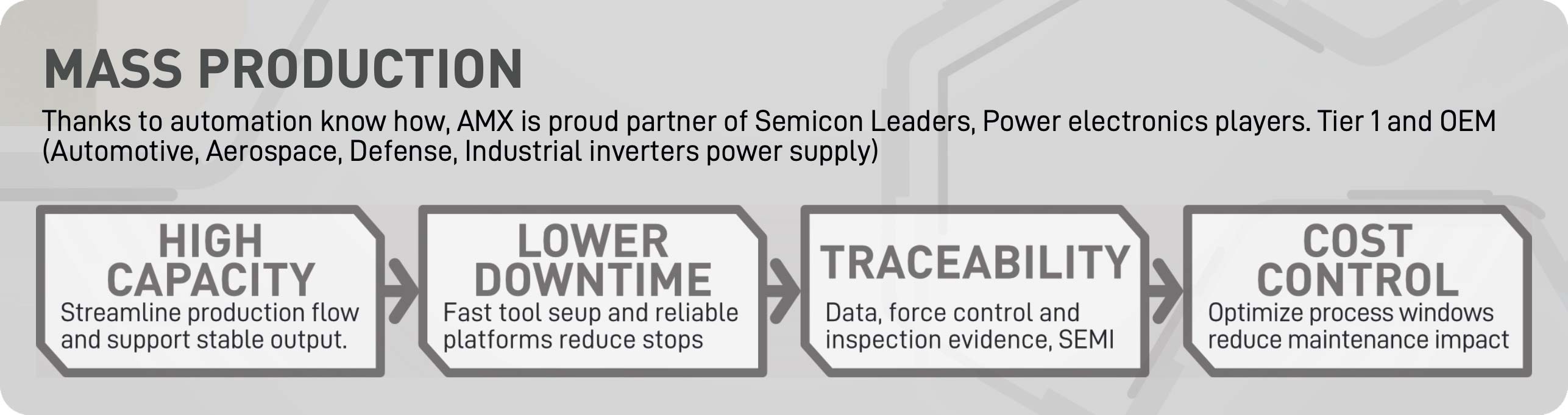

High-Throughput Production
First in class production. Reliable control. Lower downtime.For production, the X-Sinter P200X Series and Inline X-SAM M201X combine process stability with inline quality evidence: reliable high-capacity sintering thanks to exclusive AMX Micropunch System, inert atmosphere full process, traceable controls (SEMI Standards), automatic inspection and a practical route to lower maintenance cost and fewer operational stops.
X-Sinter P201X Gen.3
- Full in line unit
- MicroPunch system [AMX Patented]
- Large Sintering Area 350mm x 270mm
- Sintering force up to 490 kN or 980 kN
- Integrated Pre-heating and Post-cooling areas
- Controlled atmosphere full cabinet (N2 or others) up to 100ppm
- Copper sintering ready !!!
- Load cell force measurement for quality control
- Best on market footprint W1400 x D1600 x H1600 mm
- Automatic protective film feeding
- AMX Vision System
- Customer tray
- Pass through option
- SEMI Standards - ISO6
- Proprietary software easy interface;
- Smart Factory (Industry 4.0): Secs Gem / OPCUA / OPCON
X-SAM M201X
- Full in-line unit compatible with customer carriers (up to 2 per cycle)
- Automation: Fully integrable, automatic loading / unloading system
- Scanning Capabilities: Multiple transducers up to 400MHz (optional), supporting C-Scan and/or T-Scan.
- Water Management: Water tank with an embedded debubbler and filtering system
- Component Safety: Customized holders/water shells for exposed (non-encapsulated) active components;
- Integrated Drying: Features one or multiple embedded drying station
- Resolution: customizable up to 50μm
- Software & AI: AMX software interface with integrated automatic defect recognition and remote assistance tools
- SEMI Standards
- Smart Factory (Industry 4.0): Secs Gem / OPCUA / OPCON
